Dual push points chain actuatorThrust force max 600N
|
|
Top-hung windows
Bottom-hung windows
Bottom-hung windows outward opening
Domes and skylights
Left-hand inward-opening
Right-hand inward-opening
|
 |

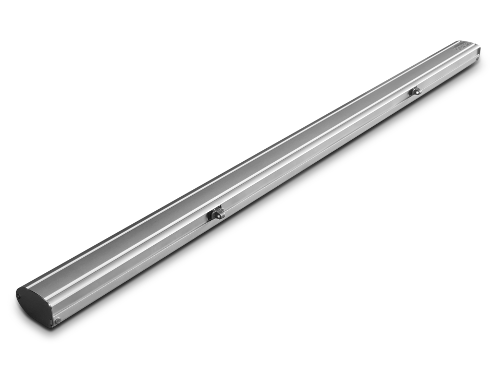

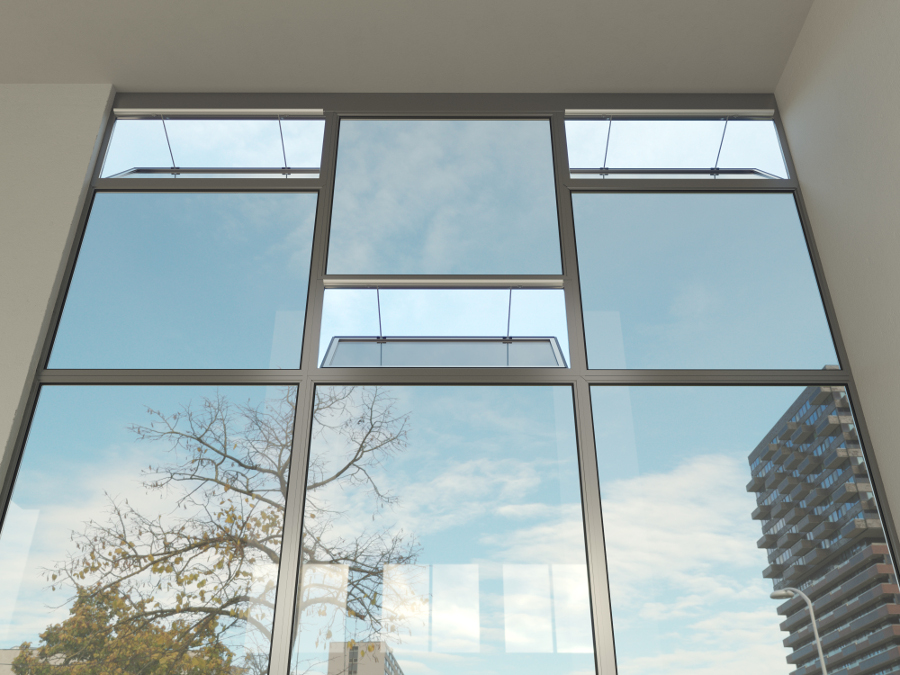

C160 RWA twin-chain is a sturdy and reliable chain actuator that can also be installed on large windows (window width over 1,500 mm). The electrical and mechanical parts are housed in an elegant aluminium casing whose length can be customised according to the width of the window, ensuring better aesthetic integration of the automation, even for large openings up to 600 mm. Ideal for installation in industrial and commercial environments where actuators tested in accordance with EN 12101-2 for smoke ventilation systems are required.
Specification text
Topp electric actuator model C160 RWA with twin double-link articulated chains, housed in an elegant extrusion, complete with bracket and accessories for reversed top-hung opening for smoke ventilation systems. Operation at 24 V DC. Maximum applicable load 400 N. Strokes 360 mm, 600 mm.
CE-marked device, tested in accordance with EN 12101-2 for smoke and heat exhaust ventilation systems.
Technical Characteristics
| Model | C160 double chain RWA Stroke 360 | C160 double chain RWA Stroke 600 |
| Power voltage | 24 V | 24 V |
| Max applicable load in thrust | 400 N | 600 N |
| Max applicable load in traction | 300 N | 600 N |
| Stroke | 360 mm | 600 mm |
| Absorbed current | 0,75 A | 2,10 A |
| Idle translation speed | 7,5 mm/s | 13 mm/s |
| Duration of the idle stroke | 48 s | 45 s |
| Service type | S2 of 4 min | S2 of 4 min |
| Operating temperature | - 15°C + 50°C | - 15°C + 50°C |
| Protection Class | IP 30 | IP 30 |
| Window mounting adjustment | not necessary | not necessary |
| Parallel connection option | yes | yes |
| Stroke end | Electronic in opening, by amperometric absorption in closing | |
Frequently Asked Questions
Is the extrusion of the RWA double-chain version customisable?
Yes: the length of the extrusion can be customised according to the window width (international patent).
How does it ensure hold in top-hung opening?
It has a special coupling ensuring greater hold, with a long stroke, in top-hung applications.
What design does this actuator have?
It features an innovative design, consistent with the aesthetics of the double-chain range.
