Chain actuator

Thrust force 300 N
Adjustable stroke max. 400mm
Download
 Electric actuator Topp model ACK4 with a double link articulated stainless steel chain, enclosed in a special diecast aluminum casing, painted with epoxy powders, with different mounting accessories for top and bottom hung windows. Operation at 24V DC. Max. traction and thrust force 300N. End of stroke adjustable at 100, 150, 200, 205, 300, 350, 400 mm by an external knob located on both sides of the actuator. Electronic device with acoustic warning to signal erroneous installation (buzzer).

Upon request, a preset S version for the synchronous operation of more actuators on the same window is available.
High protection IP 55 rated. CE marked device, complying with the EN12101-2 standard designed for smoke ventilation applications.

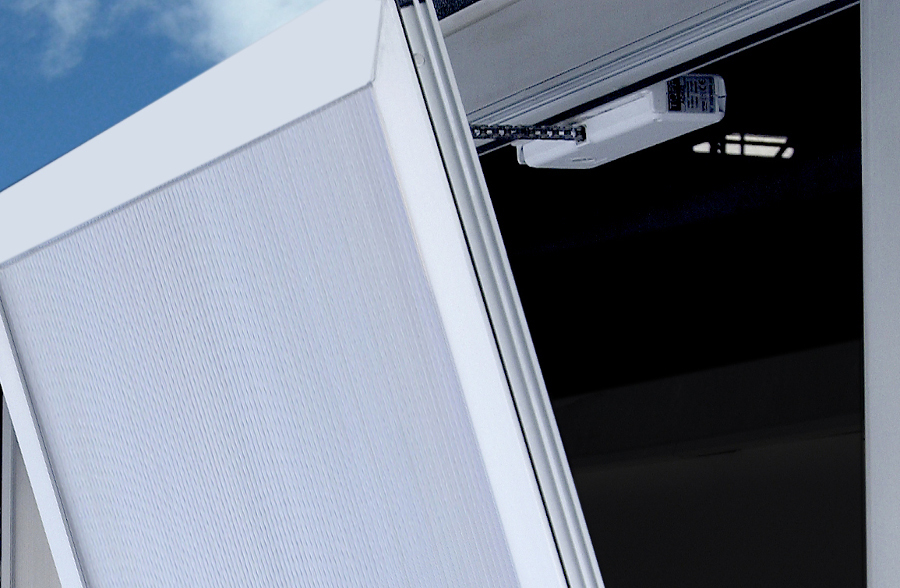

Applications





 Chain Actuator ACK4 RWA
Technical Characteristics
Model ACK4 RWA
Power voltage 24V c.c.
Max applicable load in thrust 300 N
Max applicable load in traction 300 N
Strokes 100 - 150 - 200 - 250 - 300 - 350 - 400 mm
Absorbed current 1,35 A
Idle translation speed 17 mm\s
Duration of the idle stroke 23 s
Double electrical insulation yes
Service type S2 di 3 min
Operating temperature - 5°C + 50°C
Protection Class IP 55 (available special IP66 version)
Window mounting adjustment 10 mm
Parallel connection option yes
Synchronous operation of 2 ACK4* on the same window S version
Chain position control yes
Stroke end encoder
Audio alarm for reporting an incorrect assembly yes
Dimensions 288,5x83x47,8 mm
Weight ** of the installed unit 1,9 kg

* the indicated weight is subject to variations, depending on the chosen accessories

Frequently Asked Questions
What makes the ACK4 RWA suitable for smoke and heat exhaust?

The ACK4 RWA complies with the EN12101-2 directive for smoke and heat exhaust ventilation systems and runs at 24V DC, a typical requirement of RWA applications powered by a dedicated control unit.

Does it keep the same mechanical performance as the standard ACK4?

Yes: thrust force 300 N, maximum stroke 400 mm adjustable to 7 positions and stainless steel double-link chain remain unchanged, as does the IP55 protection rating.

Is it synchronisable and how does it signal an incorrect installation?

On request the S version for synchronising several actuators on the same window is available. The electronics have an acoustic buzzer to signal incorrect installation. CE marked.
