F30
Profile for fixed glass panels
The profile is 21mm thick, the bottom and upper base is 30 mm high and the side profiles are 13mm wide.
It is supplied with gaskets and accessories to fit laminated 10,76mm glass or tempered 10mm, 12mm glasses.
It is supplied with gaskets and accessories to fit laminated 10,76mm glass or tempered 10mm, 12mm glasses.
Download

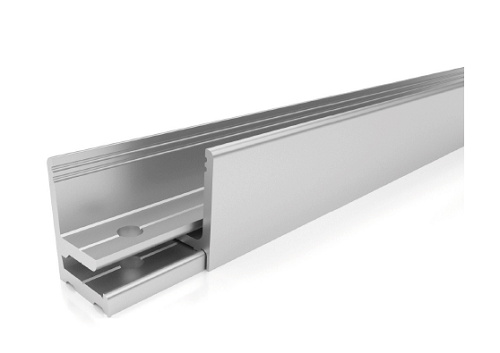

F30 profile finish detail

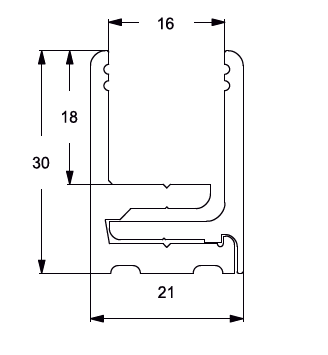

snap-in lower profile section

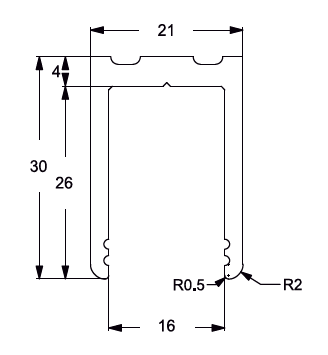

Top profile section

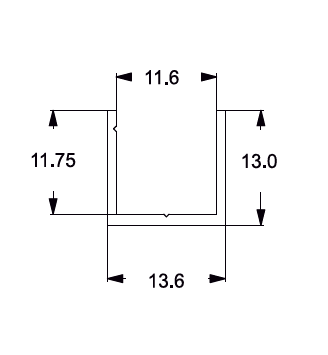

Vertical profile section
Frequently Asked Questions
What is the F30 profile used for and what are its dimensions?
The F30 is the profile for fixed leaves of automatic sliding glass doors: it has a thickness of 21 mm, a height of the upper and lower profiles of 30 mm and a width of the uprights of 13 mm.
Which glass thicknesses is the F30 designed for?
It is supplied with gaskets included for tempered glass of 10 or 12 mm or for laminated glass, so as to suit the various infill solutions.

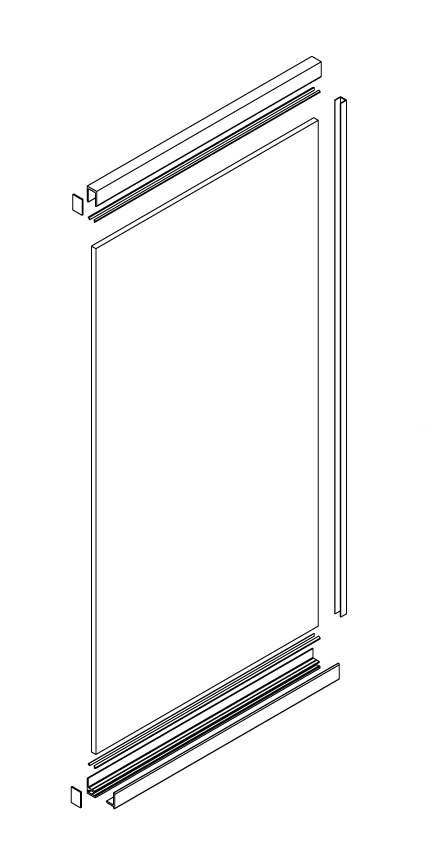

Which sections make up the F30 profile?
The system comprises the lower snap-on profile, the upper profile and the vertical upright, which can be combined to create the fixed leaf aesthetically coordinated with the moving leaves.
