| M00 |
Multi-point lock driveMax. load 600N
|
|
|
M00 is a sturdy and reliable actuator that enables airtight closing of the window. It is compatible with all TOPP actuators but is particularly useful in combination with the A90 actuator for 90-degree casement opening, to ensure a better seal on the closing edge. Ideal for installation in industrial, commercial and residential environments.
Specification text
Topp electric actuator model M00 for perimeter locking of the window, featuring a very small footprint to allow concealed installation inside the profile or surface mounting on the moving sash or frame. Operation 24 V, maximum applicable load 600 N, multi-point locking pawl travel 18 and 36 mm (automatic horizontal movement that, through an engagement device, drives the pawls of the perimeter hardware to allow airtight, multi-point closing of the window). Compatible with actuators in the TOPP range.
CE-marked device, tested in accordance with EN 12101-2 for smoke and heat exhaust ventilation systems.

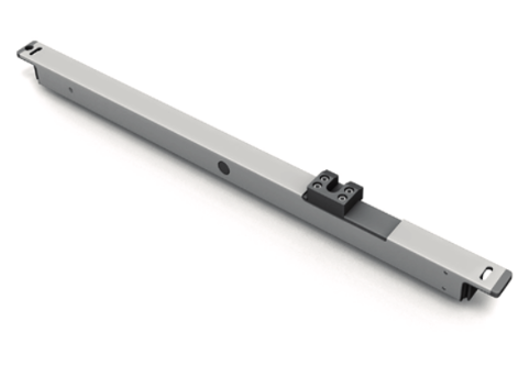

M00 Concealed multi-point lock drive for inward or outward opening |  |

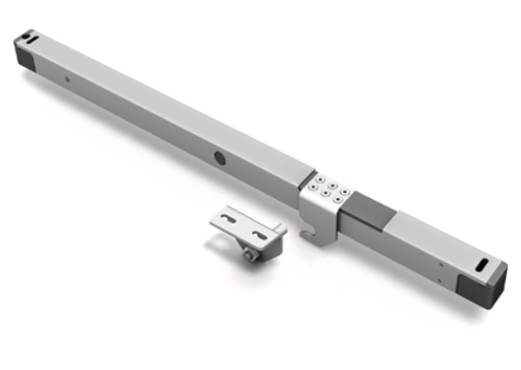

M00-1 Electric lock exposed on the frame for inward opening |  |

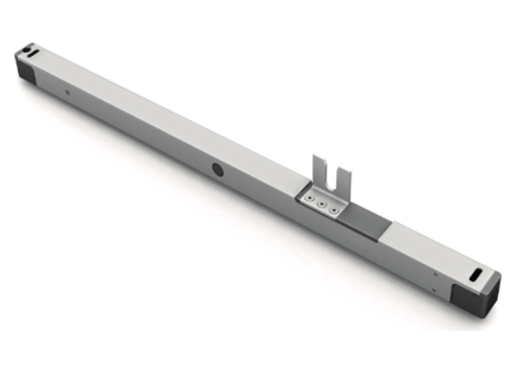

M00-2 Multi-point lock drive exposed on the frame for outward openingMulti-point lock drive exposed on the sash for inward opening |  |

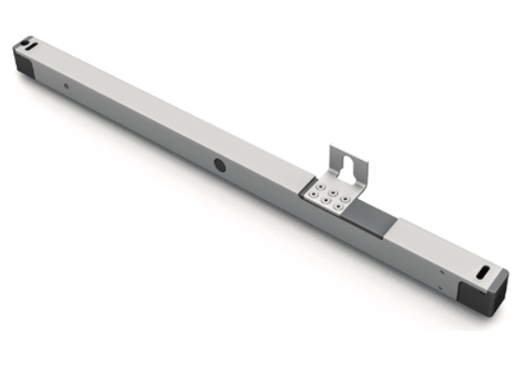

M00-3 Multi-point lock drive exposed on the frame for inward opening |  |

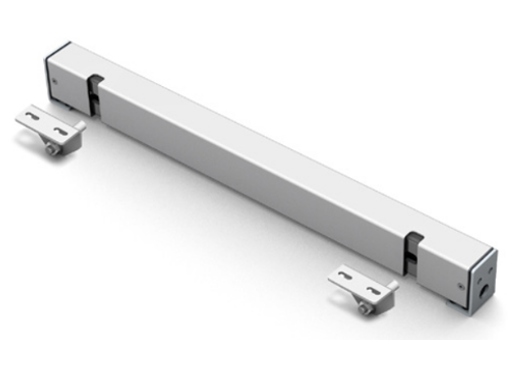

M00-4 Double electric lock exposed on the frame for inward opening |  |
Technical Characteristics
| Model | M00 |
| Power supply voltage | 24V d.c |
| Multi-point maximum load | 600 N |
| Locking pin stroke | 18 mm / 36 mm |
| Absorbed current | 1,5 A with chain actuator combined (C20) |
| Locking pin speed at max. load | 1,0 mm/s |
| Protection against electric shock | Classe III |
| Service Type | S2 di 2 min |
| Operating temperature | -10°C +60°C |
| Protection Class | IP 32 |
Frequently Asked Questions
Can the M00 be installed concealed within the profile?
Yes: the M00 is a multipoint lock that can be integrated concealed inside the profile, as well as surface-mounted on the movable leaf or frame.
What strokes does the M00 offer?
The locking-cam travel is adjustable to 18 or 36 mm.
Does the M00 provide an emergency release?
Yes, the M00 has an emergency release.
