| C160RWA |
Chain actuatorThrust force 300 N
|
|
Top-hung windows
Bottom-hung windows
Bottom-hung windows outward opening
Domes and skylights
Left-hand inward-opening
Right-hand inward-opening
|
 |

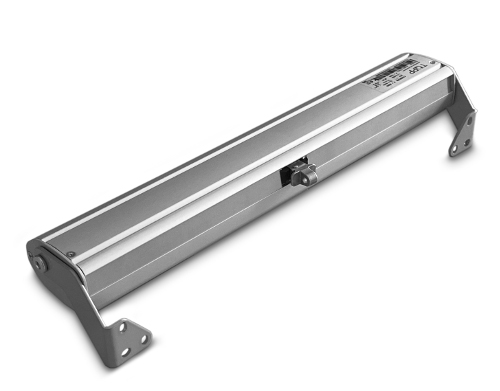

Topp electric actuator model C160 RWA with double-link articulated chain, housed in an elegant extrusion, complete with bracket and accessories for reversed top-hung opening for smoke ventilation systems. Operation at 24 V DC. Maximum applicable load 300 N. Strokes 360 mm, 600 mm, 1000 mm.

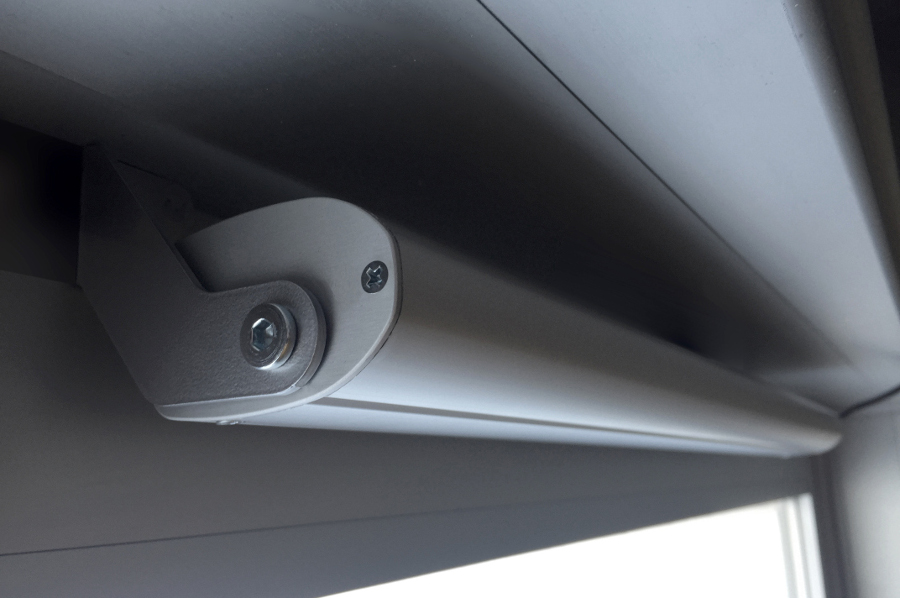

C160 RWA is a sturdy and reliable chain actuator that can be installed in any setting. The electrical and mechanical parts are housed in an elegant aluminium casing for better aesthetic integration of the automation, even for large openings up to 1,000 mm. Ideal for installation in industrial and commercial environments where actuators tested in accordance with EN 12101-2 for smoke ventilation systems are required.
CE-marked device, tested in accordance with EN 12101-2 for smoke and heat exhaust ventilation systems (360 mm and 600 mm strokes).
Technical Characteristics
| Model | C160 RWA Stroke 360 | C160 RWA Stroke 600 | C160 RWA Stroke 1000 |
| Power voltage | 24 V | ||
| Max applicable load in thrust | 300 N | 250 N | 50 N |
| Max applicable load in traction | 200 N | ||
| Stroke for top-hung application | 360 mm | 600 mm | 1000 mm |
| Stroke for bottom-hung application | 322 mm | 562 mm | 962 mm |
| Absorbed current | 0,43 A | 0,60 A | 0,60 A |
| Idle translation speed | 7,5 mm/s | 10 mm/s | 10 mm/s |
| Duration of the idle stroke * | 48 s | 60 s | 100 s |
| Service type | S2 di 4 min | ||
| Operating temperature | - 15°C + 50°C | ||
| Protection Class | IP 30 | ||
| Window mounting adjustment | not necessary | ||
| Parallel connection option | yes | ||
| Possibility of installing double push point on the same window | yes | no | no |
| Stroke end | Electronic in opening, by amperometric absorption in closing | ||
* Version for RWA application: max opening time 60s.
Frequently Asked Questions
Is the C160 RWA certified for smoke exhaust?
Yes, it complies with the EN12101-2 directive for smoke and heat exhaust ventilation systems and runs at 24V DC, with strokes of 360, 600 and 1000 mm and a force of 300 N.
Is there a constraint on the opening time in RWA applications?
Yes: in the version for RWA applications the maximum opening time is 60 seconds, a requirement of the smoke and heat exhaust standard.
What type of opening is the C160 RWA intended for?
It is intended for reversed top-hung opening, a typical configuration of windows used as smoke exhaust surfaces. CE marked.
