M200

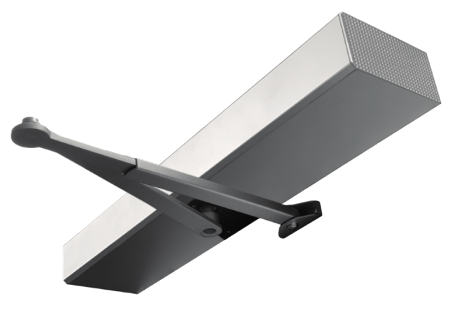

Electromechanical Swing Door Operator
Max. capacity 250 Kg
Download
Accessories

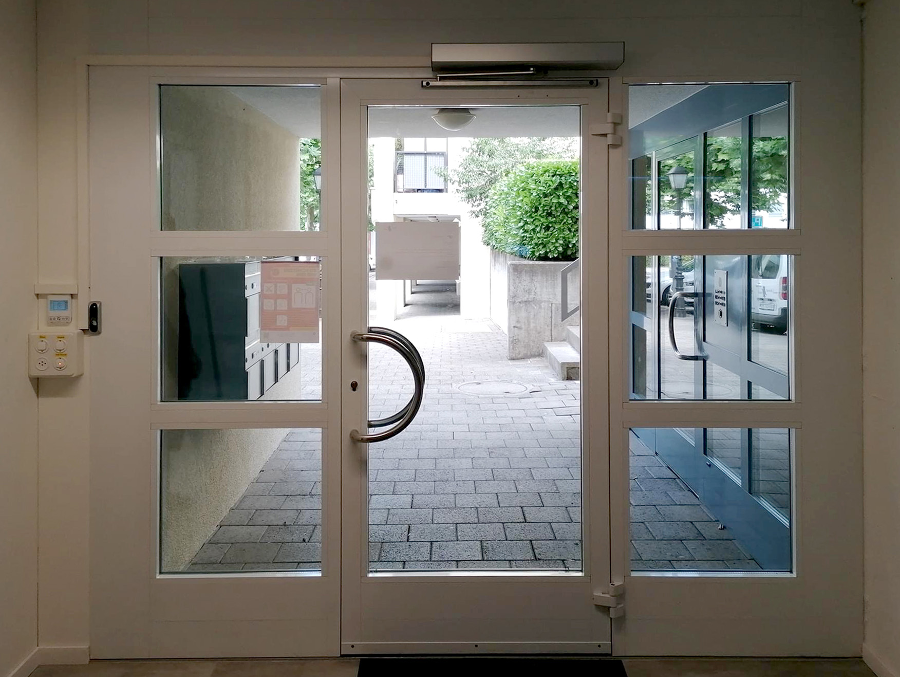

 Automatic door operators TOPP, model M200, for pedestrian swing doors. They may be used for doors with 700mm widths with maximum weight of 250kg and 1200 widths with maximum weight of 130kg respectively. Power supply 230V~ 50 Hz. With a minimalist and sober design, with an elegant aluminium cover, are the ideal solution for prestigious environments, both residential and commercial: shops, offices, hotels and other situations that require an automatic swing door.

Simple and easy to install due to the fitting plate, the adjustable settings on the electronic board and the side switches for the power supply, functions and reset selection. In compliance with the EN16005 Standard, the M200 work in either Full Power and Low Energy modes. The Low Energy mode does not require safety sensors due to the electronic control of force and weight.

Due to the combination of 3 different types of arm - slide track arm, push arm and elbow slide track arm - with extension systems, the mechanisms are very easy to configure and can be adapted to any wall and door type. In case of a power failure, a long-life battery pack will assure the operator’s functioning.

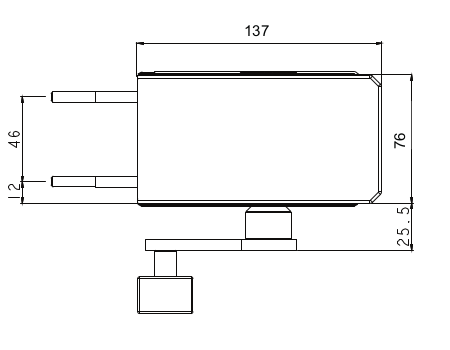

Dimensional Characteristics
automation swing doors M200 automation swing doors M200
Technical Characteristics
Power supply230V ~ 50/60Hz
Operation modesFull Energy o Low Energy
Working systemOpening by motor - Closing by motor
Peripheral power output24V - 500mA max
Absorption0,65 A
Power absorbed150W
Durability1.000.000 cycles
Opening speed50°/s max
Automatic closing timeAdjustable from 0 ÷ 60s
Max. door-leaf weight for leaf 700mm250kg
Max. door-leaf weight for leaf 1200mm130kg
Clear passage width with push armmin 600mm – max 1600mm
Clear passage width with slide track armmin 650mm – max 1600mm
Clear passage width with elbow slide track armmin 700mm – max 1600mm
Max. opening angle of push arm115°
Max. opening angle of slide track arm95°
Overall dimensions643mm x 136mm x H74mm
Frequently Asked Questions
What is the maximum capacity for the M200/S200 swing doors?

The maximum capacity is 250 kg for leaves 700 mm wide and 130 kg for leaves 1200 mm wide: as the leaf width increases, the permitted weight decreases. Power supply 230V~ 50Hz.

Does the operator comply with the safety standards for power-operated doors?

Yes, it complies with EN16005 and provides Full Energy and Low Energy operation; in Low Energy mode the electronic force and speed control limits risks without necessarily requiring additional sensors.

Is it complicated to install and adjust?

Installation is made easier by the mounting plate, the settings configurable on the electronic board and the side switches for power, function selection and reset. The look is minimal with an aluminium cover.
