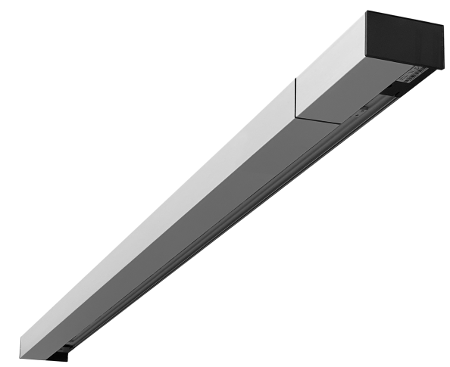

TOPP automatic door system model T240 for pedestrian sliding doors, max. load 240 Kg, intensive duty device, with electronic board with microprocessor of latest generation that allows the motion self-adjustment according to weight and dimension of the door panels. Built-in safety functions with thrust force control and automatic reverse on obstruction in the threshold. Device with encoder for the automatic reading of stroke, position and door panels slowdown. Programming of the basic parameters from the electronic board and of the advanced functions for user and installer via digital selector. Operation modes selectable from the functions selector, the key lock switch, the digital selector or the remote control. CE certified automation in compliance with the EN16005. |

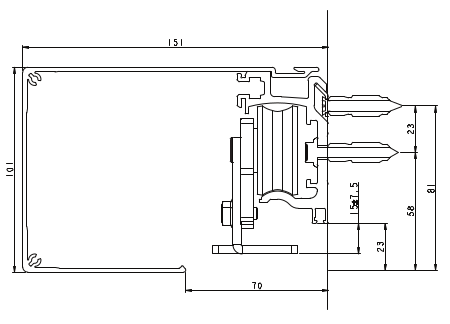

| Dimensional Characteristics | ||||||||||||||||||||||||||||||||||||||||
 |
 |
|||||||||||||||||||||||||||||||||||||||
| Technical Characteristics | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| Frequently Asked Questions | ||||||||||||||||||||||||||||||||||||||||
What is the maximum capacity of the T240 and what type of use is it designed for?The T240 handles pedestrian sliding leaves with a maximum capacity of 240 kg and is designed for continuous and intensive use, with a microprocessor electronic board that self-adjusts the movement according to the weight and size of the leaves. How does the T240 handle safety in the event of an obstacle?The safety functions are built in: thrust-force control triggers automatic motion reversal when an obstacle is detected in the sliding area. An encoder device automatically reads the stroke, position and deceleration of the leaves. Compliant with EN16005. How is the T240 programmed and how are the operating modes selected?Basic parameters are programmed via buttons on the electronic board, while advanced programming for the user and installer is possible through a digital selector. Operating modes are selected with a rotary, digital or remote-control selector. CE marking. | ||||||||||||||||||||||||||||||||||||||||
 | ||||||||||||||||||||||||||||||||||||||||
