| A90RWA |
Actuator for swing openingMaximum angle 90° |
|
Left-hand inward-opening
Right-hand inward-opening
Left-hand outward-opening
Right-hand outward-opening
|
 |

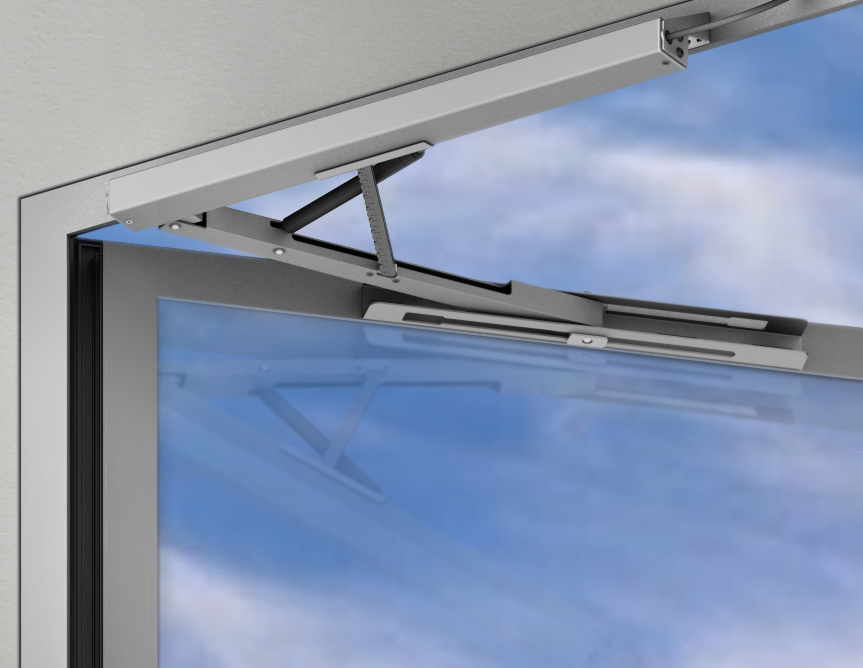

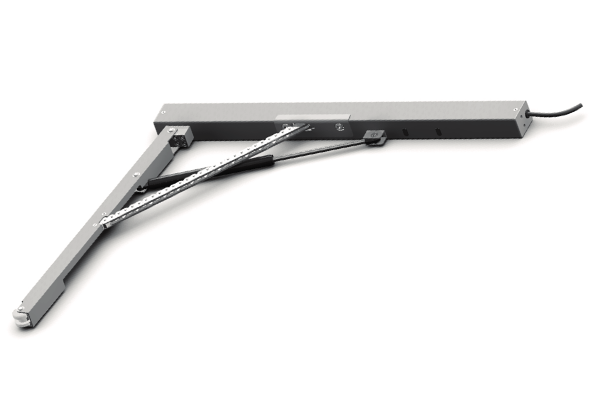

Topp electric actuator model A90 RWA with double-link articulated chain, housed in a dedicated aluminium casing, complete with accessories and a special chain guide for casement (side-hung) opening up to 90 degrees. Operation at 24 V. The actuator can be installed for casement opening either outward or inward. A version is available pre-set for synchronisation and simultaneous operation of two actuators installed on a single window. The actuator or pair of actuators can also be connected to the M00 electric lock to ensure airtight closing of the window.
A90 RWA is a sturdy and reliable actuator for 90-degree casement opening. It can be installed in a pair with a second actuator if the window is very tall (generally over 1,500 mm) or combined with an M00 electric lock fitted on the closing edge if the window is wide (generally over 1,000 mm), to ensure a better seal when closed. Ideal for installation in industrial and commercial environments where 90-degree opening actuators tested in accordance with EN 12101-2 for smoke ventilation systems are required.
CE-marked device, tested in accordance with EN 12101-2 for smoke and heat exhaust ventilation systems.
Technical Characteristics
| Model | A90 RWA 24V |
| Power voltage | 24V d.c |
| Max applicable load in thrust | 400 N |
| Max applicable load in traction | 400 N |
| Maximum opening angle | 90° |
| Idle translation speed | 13.3 mm/s |
| Opening time (opening at 100°) | 30 s |
| Absorbed current | 1.2A |
| Service type | S2 of 4 min |
| Operating temperature | -5°C + 50°C |
| Protection Class | IP 30 |
| Possibility of installing double push point on the same window | yes |
| Parallel connection option | yes |
| Overlap from 0 to 50mm with automatic learning | yes |
| Dimensions | 673 x 43 x 93 mm |
Frequently Asked Questions
How does the A90 RWA version differ from the standard A90?
The RWA version runs at 24V and is verified to the EN12101-2 directive for smoke and heat exhaust ventilation systems, whereas the standard A90 is 230V and intended for ventilation/comfort only.
Can the A90 RWA open the leaf both inward and outward?
Yes: like the standard A90, the dedicated chain guide allows casement opening up to 90° in both directions, maintaining EN12101-2 compliance for smoke exhaust use.
Can it be connected to a lock for sealing the window?
Yes, the actuator or the pair can be connected to the M01 electric lock for airtight closing. The device is CE marked.
