P45
Profile for automatic sliding doors
The P45 profile is an adjustment profile for the common R40 system with rounded anti-crushing, anti-cutting and anti-grazing corners complying with the EN 16005 standard about safety for motorized pedestrian doors.
Custom-cut panel kit supplied with brushes, gaskets and glass-holders for 10 to 12mm glass or, alternatively, with the necessary components to complete the panel assembly with the R40 system.
Custom-cut panel kit supplied with brushes, gaskets and glass-holders for 10 to 12mm glass or, alternatively, with the necessary components to complete the panel assembly with the R40 system.
Download

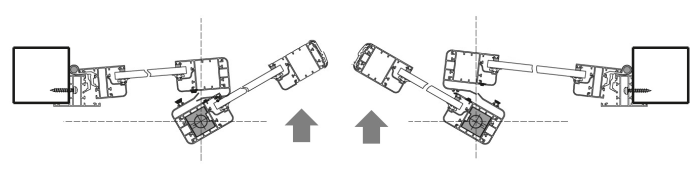

Double panel door with full break-out system

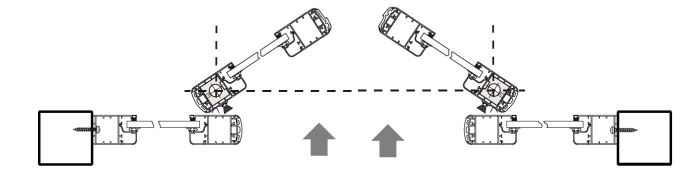

Double panel door with simple break-out system

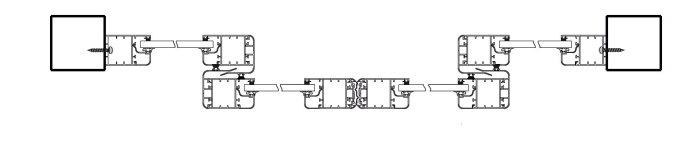

Double panel door without break-out system

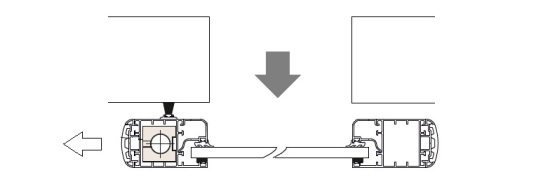

Simple break-out system for active panel without door stop

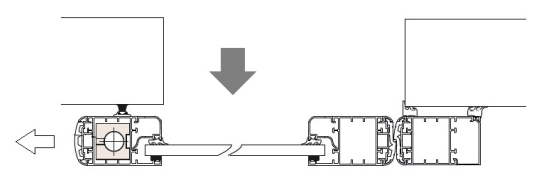

Simple break-out system for active panel with door stop

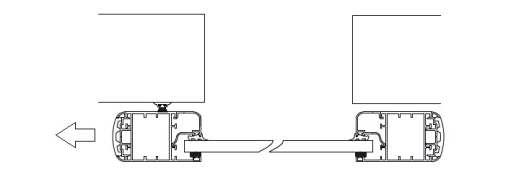

Active panel without door stop and without break-out system
Frequently Asked Questions
What is the P45 and which safety standard does it comply with?
The P45 is an adaptation system for the commercial R40 profile with rounded corners that prevent drawing-in, hooking and shearing, in compliance with the EN16005 standard for the safety in use of power-operated pedestrian doors.
Which anti-panic configurations does the P45 allow?
It allows double-leaf configurations with full anti-panic, with single anti-panic or without anti-panic, as well as single anti-panic moving leaves flush with the wall or with a stop.
Why are the P45's rounded corners important for safety?
The rounded corners reduce the risks of drawing-in, hooking and shearing during use of the powered door, a central requirement of EN16005 for protecting users.
