P35
Profile for automatic sliding doors
The profile is 35mm thick, the bottom and upper base is 50mm high and the side profiles are 35mm wide.
It is supplied with gaskets and accessories to fit glasses from 8 to 28mm of thickness.
It is supplied with gaskets and accessories to fit glasses from 8 to 28mm of thickness.
Download

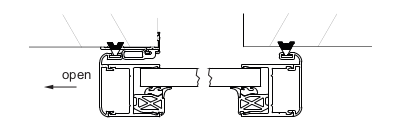

Single active panel without door stop

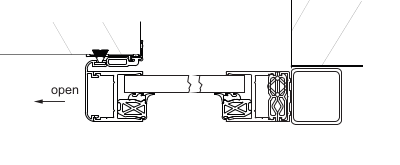

Single active panel with door stop

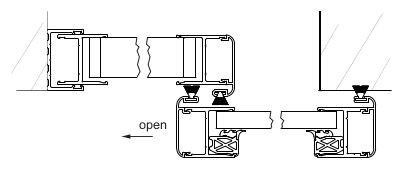

Single active + fixed panels without door stop

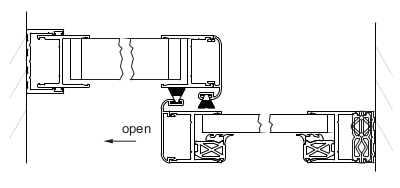

Single active + fixed panels with door stop

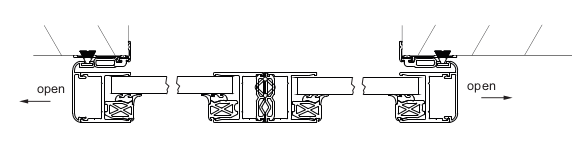

Double active panels

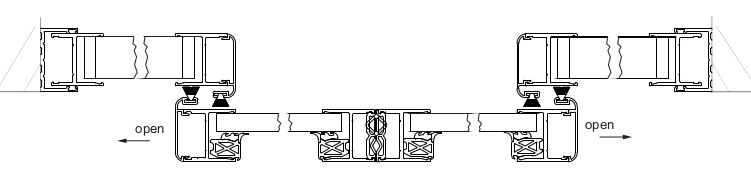

Double active + fixed panels
Frequently Asked Questions
What are the dimensions of the P35 profile?
The P35 has a thickness of 35 mm, a height of the upper and lower base of 50 mm and a width of the uprights of 35 mm, and is intended for automatic sliding doors.
Which glass thicknesses does it accept and what is supplied with it?
It is supplied with brush seals and gaskets included and allows the fitting of glass from 8 mm thick.
Which leaf configurations can be created with the P35?
The profile allows single-leaf configurations (flush with the wall or with a stop), single leaf with fixed part, double moving leaf and double moving leaf with fixed part.
