| S80RWA |
Linear stem actuatorThrust force 800 N
|
|
Top-hung windows
Bottom-hung windows outward opening
Domes and skylights
Louvers
|
 |

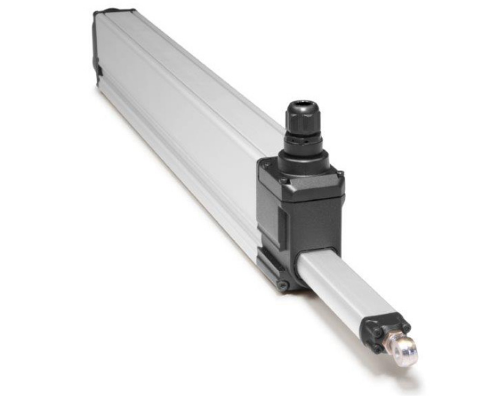

Topp electric linear actuator model S80 RWA with self-aligning tilting movement and rigid rod, complete with bracket and accessory for top-hung outward opening or for louvres and brise-soleil blades. Operation at 24 V DC. Maximum applicable thrust load 800 N. Pre-set for synchronisation and simultaneous operation of two actuators installed on a single window. Available strokes: 200 - 400 mm. IP65 protection rating.

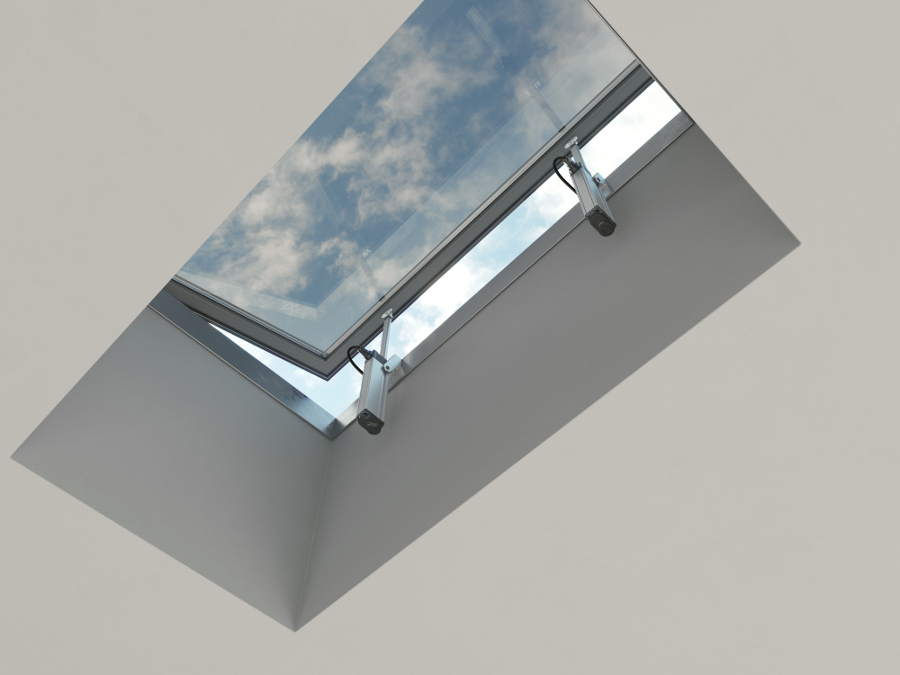

S80 RWA is a sturdy and reliable rod actuator with exclusive features such as the IP65 protection rating, making it suitable for installation on domes and skylights, including very heavy ones thanks to its considerable thrust, in industrial and commercial environments with high humidity. Ideal for installation in industrial and commercial environments where actuators tested in accordance with EN 12101-2 for smoke ventilation systems are required.
CE-marked device, tested in accordance with EN 12101-2 for smoke and heat exhaust ventilation systems.
Technical Characteristics
| Model | S80 RWA |
| Power voltage * | 24V |
| Max applicable load in thrust | 800 N |
| Max applicable load in traction | 800 N |
| Strokes | 200 - 400mm |
| Absorbed current | 1 A |
| Idle translation speed | 6,5 mm/s |
| Duration of the idle stroke | calculate as stroke divided by no-load speed |
| Double electrical insulation | yes |
| Service type | S2 di 3 min |
| Operating temperature | -20°C + 60°C |
| Protection Class | IP65 |
| Parallel connection option | yes |
| Synchronous operation of more actuators on the same window | yes |
| Stroke end | mechanical / electronic |
* power supply cable not included
Frequently Asked Questions
What protection does the S80 RWA offer against dust and water?
The S80 RWA offers a high IP65 protection rating against dust and water.
How resistant is the S80 RWA rod?
The rod has high resistance to peak loads, suited to the stresses of top-hung applications.
How precisely can the S80 RWA stroke be adjusted?
The stroke is adjustable to the millimetre.
