| C60 |
Chain actuatorThrust force 300 N - Max. stroke 600 mm |
|

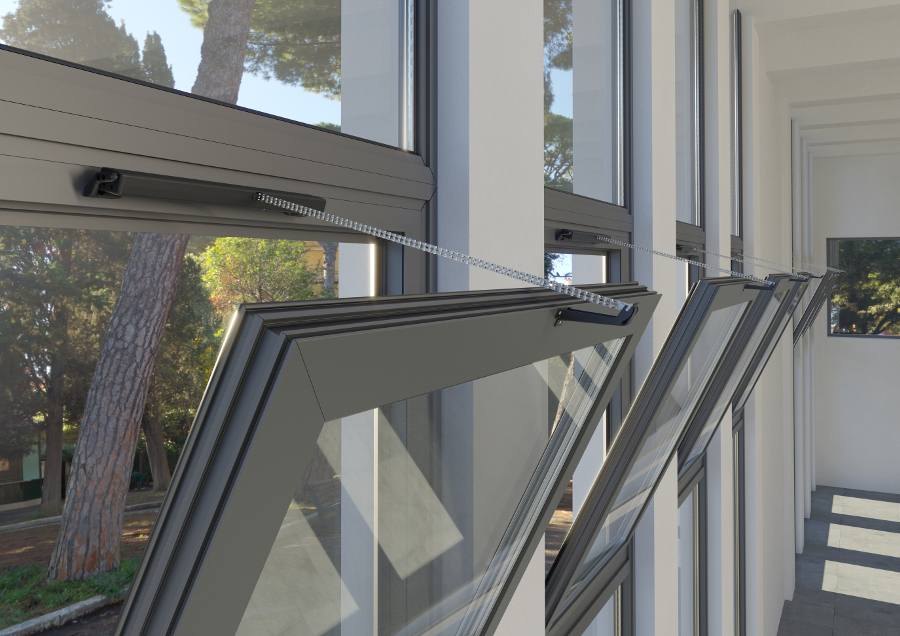

Top-hung windows
Bottom-hung windows
Bottom-hung windows outward opening
Domes and skylights
|
 |

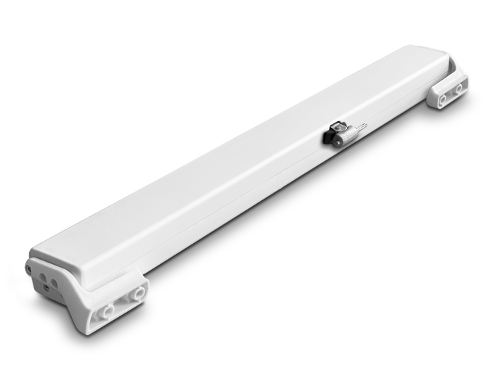

C60 is a sturdy and reliable chain actuator that combines minimal footprint, aesthetic elegance and above-standard openings in a compact automation, suitable for top-hung and bottom-hung applications in commercial and residential settings.
Specification text
Topp electric actuator model C60 with double-link articulated chain, housed in a dedicated casing, complete with bracket and accessories for top-hung outward or bottom-hung (tilt) opening. Operation at 230 V 50 Hz or, alternatively, at 24 V DC. Maximum applicable load 300 N. Stroke adjustable from the outside via a selector switch with stops at 510 and 600 mm. Electronic closing limit stop by current sensing.
CE-marked device.
Technical Characteristics
| Model | C60 230V | C60 24V |
| Power voltage | 230V ~ 50Hz | 24V c.c. |
| Max applicable load in thrust | 300N (max stroke 510) - 250N (max stroke 600) | |
| Max applicable load in traction | 200 N | |
| Stroke | 510 mm e 600 mm | |
| Absorbed current | 0,14 A | 0,49 A |
| Idle translation speed | 8 mm\s | 7,5 mm\s |
| Duration of the idle stroke (600 mm) | 75 s | 80 s |
| Service type | S2 di 4 min | |
| Operating temperature | - 5°C + 50°C | |
| Protection Class | IP 30 | |
| Stroke end | Electronic in opening, by amperometric absorption in closing | |
| Dimensions | 470x48x34 mm | |
| Weight | 1,5 kg | |
Frequently Asked Questions
Is the C60 suitable where large openings with minimal footprint are needed?
Yes: the C60 combines a long stroke with compact actuator dimensions, for applications requiring minimal footprint.
How does the C60 behave in top-hung applications?
The C60 has a special coupling that ensures greater hold, with a long stroke, in top-hung applications.
What is the C60 installation like?
The C60 uses tilting brackets that are easy to install and versatile in application.
