| C30 |
Chain actuatorThrust force 300 N - Max. stroke 380 mm |
|
Top-hung windows
Bottom-hung windows
Bottom-hung windows outward opening
Domes and skylights
|
 |

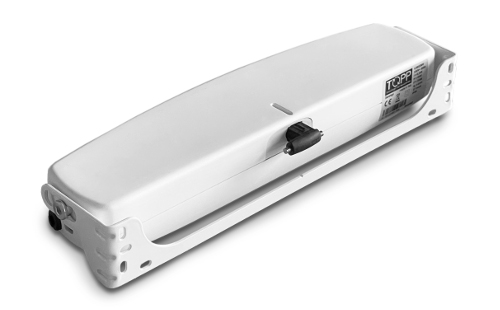

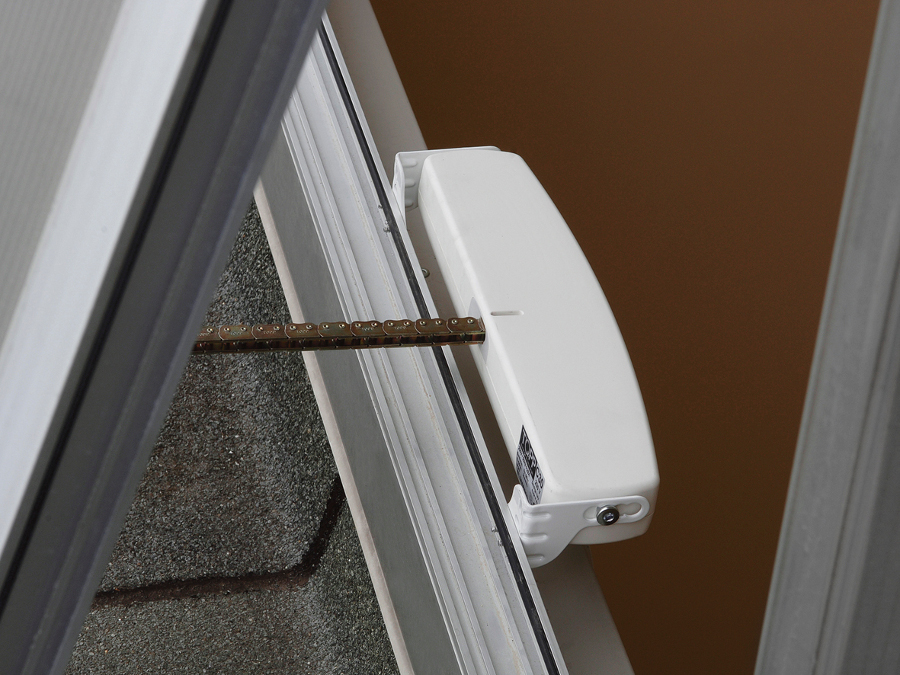

C30 is a sturdy and reliable chain actuator that can be installed in any setting, with an excellent value-for-money ratio that makes it particularly suited to top-hung, bottom-hung and shed (sawtooth) roof windows in industrial buildings and warehouses.
Specification text
Topp electric actuator model C30 with double-link articulated chain, housed in a dedicated casing, complete with bracket and accessories for top-hung outward or bottom-hung (tilt) opening. Operation at 230 V 50 Hz or, alternatively, at 24 V DC. Maximum applicable load 300 N. Quick-release attachment to the window frame. Stroke adjustable from the outside via a selector switch with stops at 200 and 380 mm. Electronics with an acoustic buzzer that warns the user of incorrect installation. On request, an S version is available, pre-set for synchronisation and simultaneous operation of two actuators installed on a single window.
CE-marked device.
Technical Characteristics
| Model | C30 230V | C30 24V |
| Power voltage | 230V ~ 50Hz | 24V c.c. |
| Max applicable load in thrust | 300 N | |
| Max applicable load in traction | 300 N | |
| Strokes (selectable at any time) | 200 e 380 mm | |
| Absorbed current | 0,26 A | 1,3 A |
| Idle translation speed | 37 mm\s | 17 mm\s |
| Duration of the idle stroke | 11 s | 22 s |
| Double electrical insulation | yes | |
| Service type | S2 di 4 min | |
| Operating temperature | - 5°C + 50°C | |
| Protection Class | IP 30 (available special IP40 version) | |
| Window mounting adjustment | 15 mm | |
| Swivel bracket shaft adjustment | 15 mm | |
| Parallel connection option | yes | |
| Synchronous operation of 2 C30s on the same window | S version | |
| Stroke end | encoder | |
| Audio alarm for reporting an incorrect assembly | yes | |
| Dimensions | 337,2x80x49 mm | |
| Weight ** of the installed unit | 1,1 kg | |
* the indicated weight is subject to variations, depending on the chosen accessories
Frequently Asked Questions
How is the C30 adjusted on windows with overlap?
The C30 has a telescopic chain end with quick adjustment from 0 to 15 mm, achievable even with the chain fully retracted, for use on windows with overlap (international patent).
Does the C30 adapt to different types of window?
Yes: the tilting bracket mounting is simple, fast and suitable for windows of every type and size.
How resistant is the C30 chain?
The chain is a double-link chain with extremely high resistance to peak loads.
