| C240 |
Dual push points chain actuatorThrust force 400 N - Max. stroke 360 mm |
|

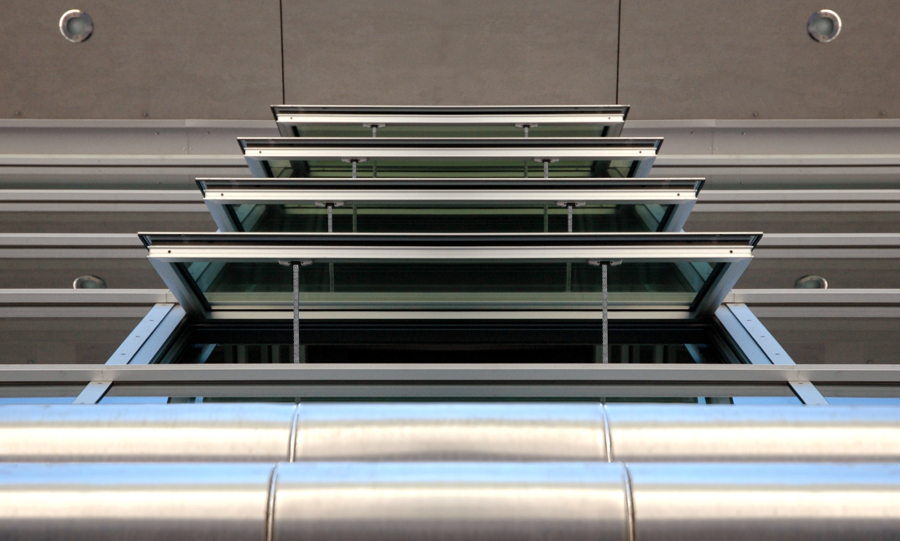

Top-hung windows
Bottom-hung windows
Bottom-hung windows outward opening
Domes and skylights
|
 |

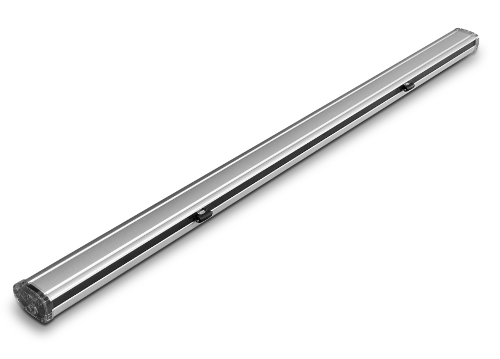

C240 is a sturdy and reliable chain actuator that can also be installed on large windows (window width over 1,500 mm). The electrical and mechanical parts are housed in an elegant aluminium casing whose length can be customised according to the width of the window, ensuring better aesthetic integration of the automation.
Specification text
Topp electric actuator model C240 with twin double-link articulated chains, housed in an elegant aluminium extrusion available on request from 1200 mm to 4000 mm in length, complete with bracket and accessories for top-hung outward opening. Operation at 230 V 50 Hz or, alternatively, at 24 V DC. Maximum applicable load 400 N. Quick-release attachments to the window frame. Maximum stroke 360 mm.
CE-marked device.
Technical Characteristics
| Model | C240 230V | C240 24V |
| Power voltage | 230V ~ 50Hz | min 21V - max 28V c.c. |
| Max applicable load in thrust | 400 N | |
| Max applicable load in traction | 300 N | |
| Stroke | 360 mm | |
| Absorbed current | 0,22 A | 0,75 A |
| Idle translation speed | 8 mm\s | 7,5 mm\s |
| Duration of the idle stroke | 46 s | 48 s |
| Double electrical insulation | yes | - |
| Service type | S2 di 4 min | |
| Operating temperature | - 5°C + 50°C | |
| Protection Class | IP 30 | |
| Window mounting adjustment | not necessary | |
| Parallel connection option | yes | |
| Stroke end | Electronic in opening, by amperometric absorption in closing | |
Frequently Asked Questions
Does the C240 extrusion adapt to the window width?
Yes: the length of the extrusion can be customised according to the window width (international patent).
From which side does the C240 cable exit?
The cable is supplied as standard and can exit from either side.
What styling does the C240 have?
The C240 features an innovative design, suitable also for very wide windows.
