| C160 |
Chain actuatorThrust force 300 N
|
|
Top-hung windows
Bottom-hung windows
Bottom-hung windows outward opening
Domes and skylights
Left-hand inward-opening
Right-hand inward-opening
|
 |

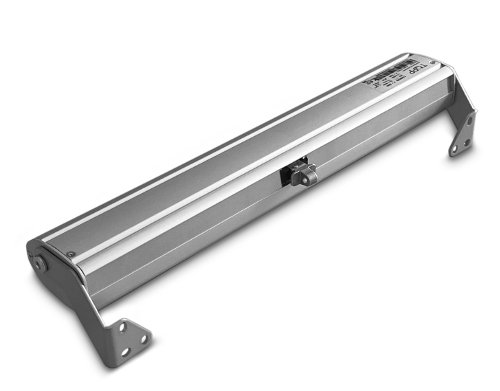

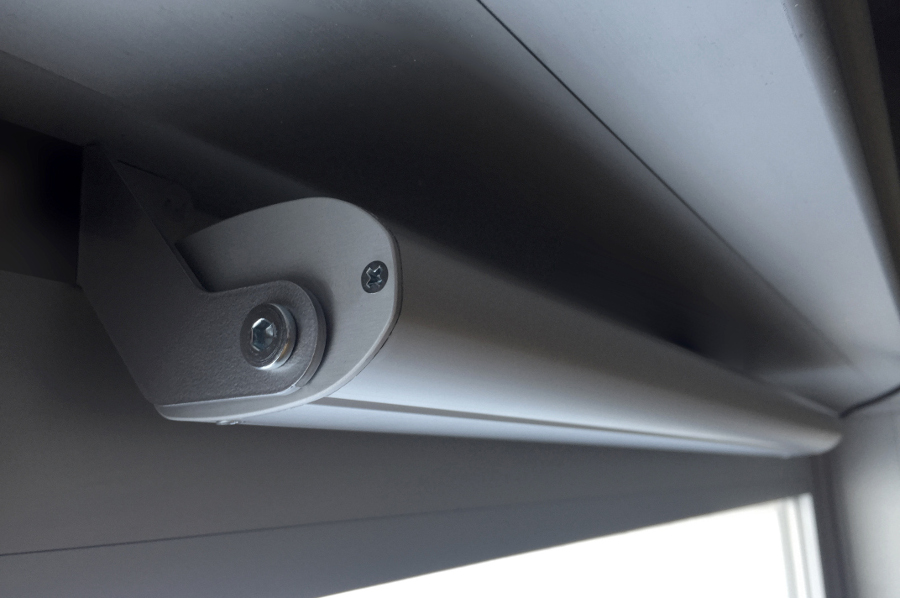

C160 is a sturdy and reliable chain actuator that can be installed in any setting. The electrical and mechanical parts are housed in an elegant aluminium casing for better aesthetic integration of the automation, even for large openings up to 1,000 mm.
Specification text
Topp electric actuator model C160 with double-link articulated chain, complete with bracket and accessories for top-hung outward opening. Operation at 230 V 50 Hz. Maximum applicable load 300 N. Stroke 360 - 600 - 1000 mm.
CE-marked device.
Technical Characteristics
| Model | C160 stroke 360 | C160 stroke 600 | C160 stroke 1000 |
| Power voltage | 230V ~ 50Hz | ||
| Max applicable load in thrust | 300 N | 250 N | 50 N |
| Max applicable load in traction | 200 N | ||
| Stroke for top-hung application | 360 mm | 600 mm | 1000 mm |
| Stroke for bottom-hung application | 322 mm | 562 mm | 962 mm |
| Absorbed current | 0,12 A | 0,14 A | 0,14 A |
| Idle translation speed | 8 mm/s | ||
| Duration of the idle stroke | 45 s | 75 s | 125 s |
| Double electrical insulation | yes | ||
| Service type | S2 di 4 min | ||
| Operating temperature | - 5°C + 50°C | ||
| Protection Class | IP 30 | ||
| Window mounting adjustment | not necessary | ||
| Parallel connection option | yes | ||
| Possibility of installing double push point on the same window | yes | no | no |
| Stroke end | Electronic in opening, by amperometric absorption in closing | ||
Frequently Asked Questions
Does the C160 stay elegant even with wide openings?
Yes: the C160 retains its aesthetic elegance even with large openings.
Can the C160 be used on side-hung windows?
Yes: it can also be installed on side-hung windows, up to 1 m of opening.
Is the C160 suitable for narrow windows?
Yes: its reduced width allows installation on narrow windows requiring large openings, up to 1 m.
