| C130 |
Chain actuatorThrust force 300 N - Max. stroke 360 mm |
|
Top-hung windows
Bottom-hung windows
Bottom-hung windows outward opening
Domes and skylights
|
 |

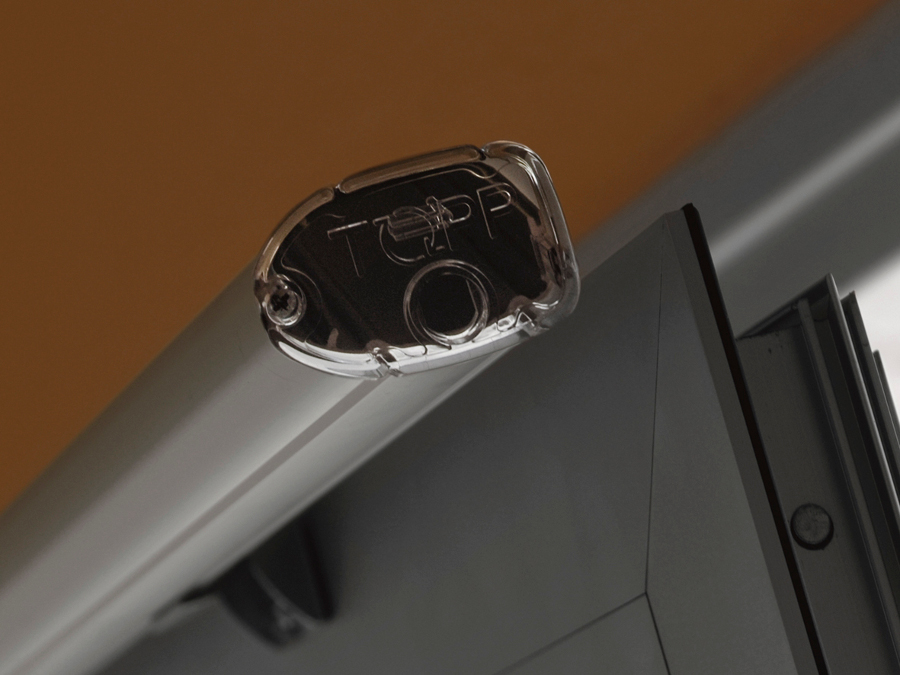

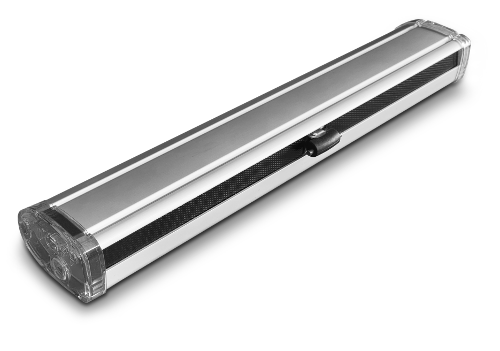

C130 is a sturdy and reliable chain actuator that can be installed in any setting. The electrical and mechanical parts are housed in an elegant aluminium casing whose length can be customised according to the width of the window, ensuring better aesthetic integration of the automation.
Specification text
Topp electric actuator model C130 with double-link articulated chain, housed in an elegant aluminium extrusion available on request from 600 mm to 1200 mm in length, complete with bracket and accessories for top-hung outward opening. Operation at 230 V 50 Hz or, alternatively, at 24 V DC. Maximum applicable load 300 N. Quick-release attachment to the window frame. Stroke 360 mm.
CE-marked device.
Technical Characteristics
| Model | C130 230V | C130 24V |
| Power voltage | 230V ~ 50Hz | min 21V ~ max 28V c.c. |
| Max applicable load in thrust | 300 N | |
| Max applicable load in traction | 200 N | |
| Stroke | 360 mm | |
| Absorbed current | 0,12 A | 0,43 A |
| Idle translation speed | 8 mm/s | 7,5 mm/s |
| Duration of the idle stroke | 46 s | 48 s |
| Double electrical insulation | yes | - |
| Service type | S2 di 4 min | |
| Operating temperature | - 5°C + 50°C | |
| Protection Class | IP 30 | |
| Window mounting adjustment | not necessary | |
| Parallel connection option | yes | |
| Stroke end | Electronic in opening, by amperometric absorption in closing | |
Frequently Asked Questions
Does the C130 extrusion adapt to the window width?
Yes: the length of the extrusion can be customised according to the window width (international patent).
From which side does the C130 cable exit?
The cable is supplied as standard and can exit from either side, to suit the position of the power supply.
What styling does the C130 have?
The C130 has an innovative design, meant to blend elegantly into the window.
