| K200T |
|
|
Download
Accessories
|
Door automation device TOPP, model K200T, for pedestrian sliding telescopic doors, max. capacity 200 kg, with electronic board with microprocessor of latest generation that allows the motion self-adjustment according to the weight and dimensions of the panels. Built-in safety functions with thrust force control and obstruction detection system that automatically reverses the operation when an obstacle in the doorway is detected. Device with encoder for the automatic reading of stroke, position and slowdown of the panels. CE marked device. Custom-made options: opening and closing speed; slowdown and approaching speed and space; pause closing time (automatic/partial/with key); partial opening; emergency operation mode with battery; operation mode with panel lock |

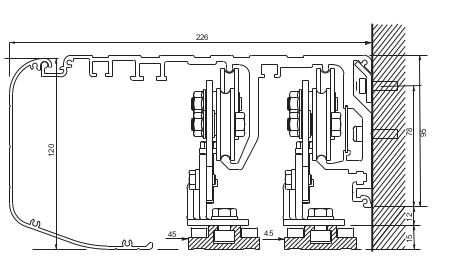

| Dimensional Characteristics | ||||||||||||||||||||||||||||||||||||||||
 |
 |
|||||||||||||||||||||||||||||||||||||||
| Technical Characteristics | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| Frequently Asked Questions | ||||||||||||||||||||||||||||||||||||||||
What characterises a telescopic door operated by the K200T?Telescopic doors have leaves that slide in a synchronised, overlapping way, freeing up a wide passage in tight spaces. The K200T operates them with a maximum capacity of 200 kg for intensive use. How does the K200T self-adjust and make the movement safe?The microprocessor board self-adjusts the movement according to the weight and size of the leaves; thrust-force control triggers automatic reversal on obstacle detection and an encoder reads the stroke, position and deceleration. Compliant with EN16005. How is the K200T programmed and controlled?Basic programming is done via buttons on the board and advanced programming via a digital selector; operating modes are selected with a rotary, digital or remote-control selector. CE marking. | ||||||||||||||||||||||||||||||||||||||||
 | ||||||||||||||||||||||||||||||||||||||||
