| T240R |
|
|
Download
Accessories
|

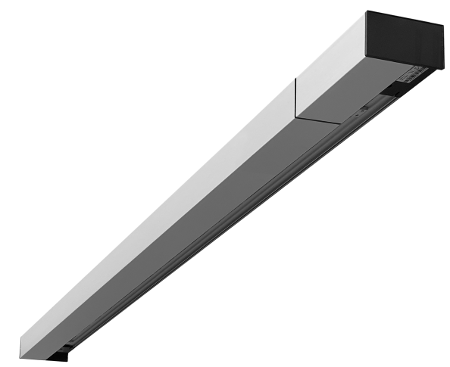

TOPP door automations, models T240R, for redundant pedestrian sliding doors, max. load 240 kg, intensive duty devices, with redundant electronic board with microprocessor of latest generation that allows the motion selfadjustment according to the weight and dimensions of the panels. Built-in safety functions with thrust force control and obstruction detection system that automatically reverses the operation when an obstacle in the doorway is detected. Double motor with encoder for the automatic reading of stroke, position and slowdown of the panels. Basic parameter setting on the electronic board and advanced setting for user and installer via digital selector. Selection of operating modes via manual selector with key. TOPP redundant automatic door systems are used for escape and emergency route solutions as an alternative to the S10 break-out system that provides a manual emergency opening. CE certified automation in compliance with the EN16005. |

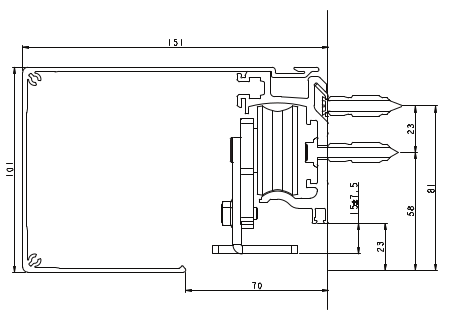

| Dimensional Characteristics | ||||||||||||||||||||||||||||||||||||||||
 |
 |
|||||||||||||||||||||||||||||||||||||||
| Technical Characteristics | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| Frequently Asked Questions | ||||||||||||||||||||||||||||||||||||||||
What does it mean that the T240R is a "redundant" operator?TOPP redundant operators are an alternative to the S10 break-out anti-panic solution: in these systems emergency opening is by manual push. The T240R has a maximum capacity of 240 kg for intensive use. How does the T240R manage safety and stroke reading?The microprocessor board self-adjusts the movement according to the weight and size of the leaves; the safety functions with force control and automatic reversal intervene on obstacle detection, and an encoder reads the stroke, position and deceleration. How is the T240R programmed and its operation selected?Basic parameters are programmed via buttons on the electronic board and operating modes are selected with a key selector, consistent with use in safety and emergency contexts. | ||||||||||||||||||||||||||||||||||||||||
 | ||||||||||||||||||||||||||||||||||||||||
