T150



Pedestrian sliding door automation
Max. capacity 150 Kg

Download
Accessories

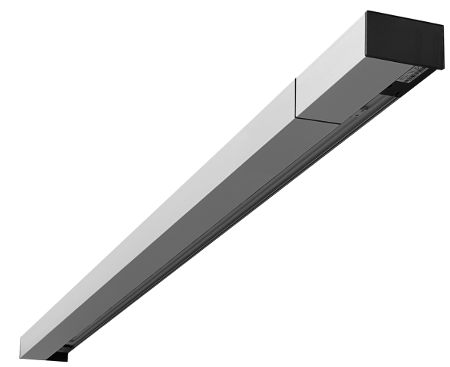

TOPP automatic door system model T150 for pedestrian sliding doors, max. load 150 Kg, continuous use, with electronic board with microprocessor of latest generation that allows the motion self-adjustment according to weight and dimension of the door panels.

Built-in safety functions with thrust force control and automatic reverse on obstruction in the threshold. Device with encoder for the automatic reading of stroke, position and door panels slowdown. Programming of the basic parameters from the electronic board and of the advanced functions for user and installer via digital selector.

Operation modes selectable from the functions selector, the key lock switch, the digital selector or the remote control. CE certified automation in compliance with the EN16005.

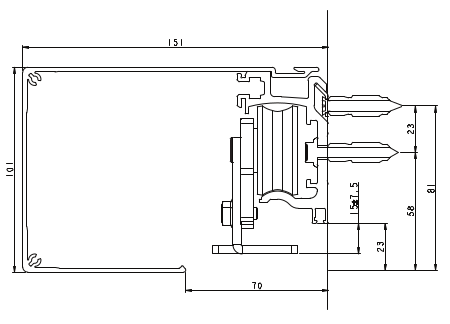

Dimensional Characteristics
automation linear doors T150 automation linear doors T150
Technical Characteristics

automation linear doors T150
