TOPP door automations, models K500, for pedestrian sliding doors, max. load 500 kg, intensive duty devices, with electronic board with microprocessor of latest generation that allows the motion selfadjustment according to the weight and dimensions of the panels. Built-in safety functions with thrust force control and obstruction detection system that automatically reverses the operation when an obstacle in the doorway is detected. Motor with encoder for the automatic reading of stroke, position and slowdown of the panels. Basic parameter setting on the electronic board and advanced setting for user and installer via digital selector. Selection of operating modes via manual selector, digital selector or wireless selector.CE certified automation in compliance with the EN16005. |

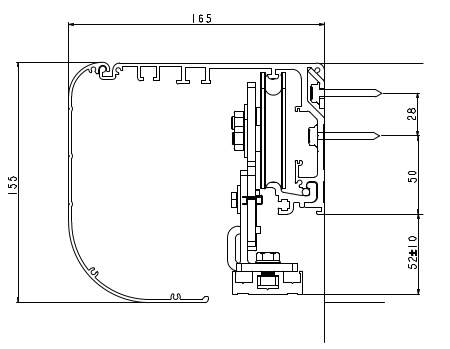

| Dimensional Characteristics | ||||||||||||||||||||||||||||||||||||||||
 |
 |
|||||||||||||||||||||||||||||||||||||||
| Technical Characteristics | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| Frequently Asked Questions | ||||||||||||||||||||||||||||||||||||||||
How much weight does the K500 support and with what leaf configuration?The K500 is the high-capacity solution in the linear range, with a maximum capacity of 500 kg referring to the two-leaf configuration, for intensive use. How does it self-adjust the movement of heavy leaves?The microprocessor electronic board self-adjusts the movement according to the weight and size of the leaves; the encoder automatically reads the stroke, position and deceleration, optimising acceleration and braking even with heavy leaves. What safety features and compliance does the K500 offer?The safety functions with thrust-force control and automatic reversal on obstacle detection are built in; basic programming from the board and advanced programming from a digital selector. Compliant with EN16005, CE marking. | ||||||||||||||||||||||||||||||||||||||||
 | ||||||||||||||||||||||||||||||||||||||||
