| K280 |
|
|
Download
Accessories
|
TOPP door automations, models K280, for pedestrian sliding doors, max. load 280 kg, intensive duty devices, with electronic board with microprocessor of latest generation that allows the motion selfadjustment according to the weight and dimensions of the panels. Built-in safety functions with thrust force control and obstruction detection system that automatically reverses the operation when an obstacle in the doorway is detected. Motor with encoder for the automatic reading of stroke, position and slowdown of the panels. Basic parameter setting on the electronic board and advanced setting for user and installer via digital selector. Selection of operating modes via manual selector, digital selector or wireless selector.CE certified automation in compliance with the EN16005. |

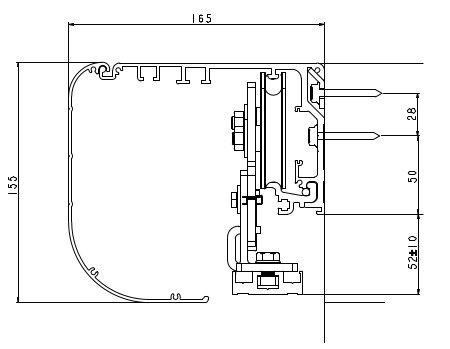

| Dimensional Characteristics | ||||||||||||||||||||||||||||||||||||||||
 |
 |
|||||||||||||||||||||||||||||||||||||||
| Technical Characteristics | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| Frequently Asked Questions | ||||||||||||||||||||||||||||||||||||||||
What is the maximum capacity of the K280 and what type of use is it designed for?The K280 handles pedestrian sliding leaves with a maximum capacity of 280 kg and is designed for intensive use, with a microprocessor electronic board that self-adjusts the movement according to the weight and size of the leaves. How does the K280 handle safety in the event of an obstacle?The safety functions are built in: thrust-force control triggers automatic motion reversal when an obstacle is detected in the sliding area. An encoder device automatically reads the stroke, position and deceleration of the leaves. Compliant with EN16005. How is the K280 programmed and how are the operating modes selected?Basic parameters are programmed via buttons on the electronic board, while advanced programming for the user and installer is possible through a digital selector. Operating modes are selected with a rotary, digital or remote-control selector. CE marking. | ||||||||||||||||||||||||||||||||||||||||
 | ||||||||||||||||||||||||||||||||||||||||
