| K250 |
|
|
Download
Accessories
|

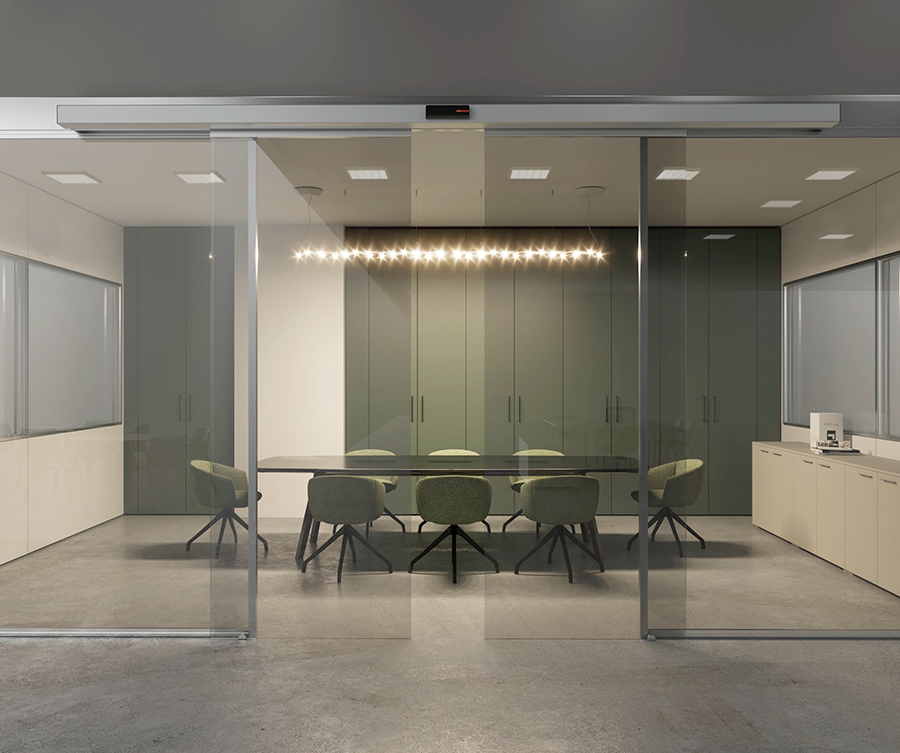

Door automation device TOPP, model K250, for pedestrian sliding doors, max. load 250 kg, with electronic board with microprocessor of latest generation that allows the motion selfadjustment according to the weight and dimensions of the panels. Builtin safety functions with thrust force control and obstruction detection system that automatically reverses the operation when an obstacle in the doorway is detected. Device with encoder for the automatic reading of stroke, position and slowdown of the panels. CE marked device. Basic parameter programming via buttons on the electronic board and advanced programming for the user and installer via smartphone, thanks to the Bluetooth device integrated into the electronic board. Selection of operating modes via knob selector, key, or via smartphone, by downloading the ToppGo App. Complies with EN16005 regulation. CE marked device. |

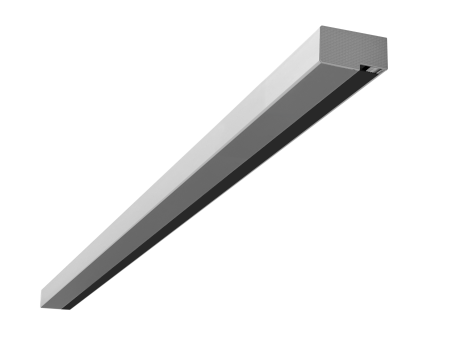

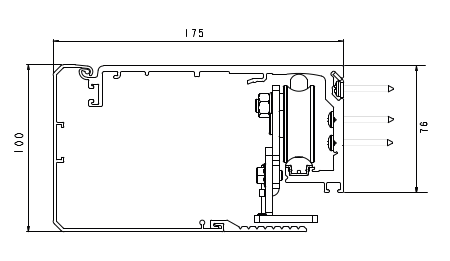

| Dimensional Characteristics | ||||||||||||||||||||||||||||||||||
 |
 |
|||||||||||||||||||||||||||||||||
| Technical Characteristics | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
| Frequently Asked Questions | ||||||||||||||||||||||||||||||||||
What is the maximum capacity of the K250 and what type of use is it designed for?The K250 handles pedestrian sliding leaves with a maximum capacity of 250 kg and is designed for continuous use, with a microprocessor electronic board that self-adjusts the movement according to the weight and size of the leaves. How does the K250 handle safety in the event of an obstacle?The safety functions are built in: thrust-force control triggers automatic motion reversal when an obstacle is detected in the sliding area. An encoder device automatically reads the stroke, position and deceleration of the leaves. Compliant with EN16005. How is the K250 programmed and how are the operating modes selected?Basic programming is done via buttons on the board, while advanced programming for the user and installer is possible via smartphone with the ToppGo app thanks to the bluetooth device built into the electronic board. Operating modes are selected with a rotary, digital or remote-control selector. CE marking. | ||||||||||||||||||||||||||||||||||
 | ||||||||||||||||||||||||||||||||||
