V1E

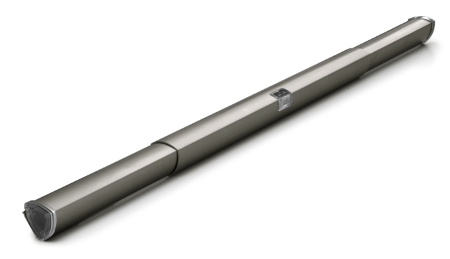

Automation for interior sliding doors. Capacity max. 70Kg

Download
Accessories

TOPP door operators, model V1E, for interior sliding doors, max. load 70kg. Power supply 230V~ 50 Hz.

V1E allows:
• Easy installation;
• Simple adaptability to existing sliding doors;
• Minimal dimensions and appealing design.

V1E and V1 can be easily installed on existing interior sliding doors and complies with the EN16005 standard, “Low Energy Movement” section, that manages the door speed by a sophisticated electronic control with no need of sensors or safety photocells.V1E and V1 are equipped with an on-board infrared motion sensor.

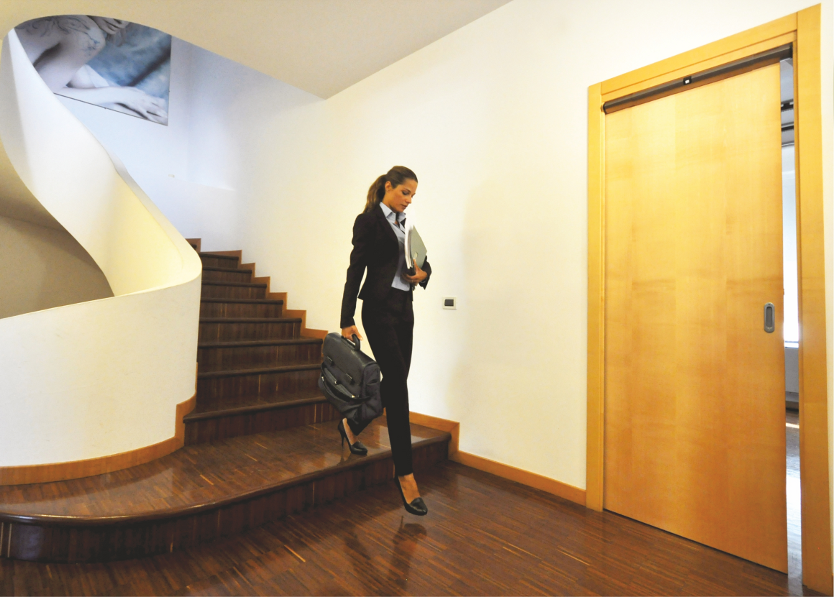

By automating internal sliding doors (pocket or surface-mounted), V1 proves extremely useful for people with disabilities, wheelchair users or those with reduced mobility, who may find traditional doors hard to handle and open, easing access to the rooms of the home and improving their mobility within the house.

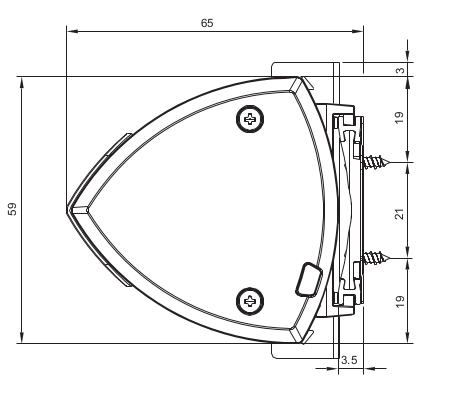

Dimensional Characteristics
automation interior doors V1E automation interior doors V1E
Technical Characteristics
Power supply*230V ~ 50/60Hz
Peripheral power output5 V 80mA / 24 V 110mA
Absorption100mA a 230 V
Power absorbed15W
Durability200.000 cycles
Opening/closing speedIn accordance with the EN16005 about -Low Energy Movement- in reference to panel weight
Control of panel weightFrom 150 N to 700 N with 35 N pitches which can be set by the installer
Maximum thrust force67N
Door open waiting timeAdjustable from 2 ÷ 60 s
Protection against electric shocksClass II
Working temperature- 5°C + 50°C
Number of door panels1 PANEL
Maximum capacity700N
Size of opening700 ÷ 1200 mm
Overall dimensions59x65 mm x Variable length 700 ÷ 1200 mm

*24V d.c. operator available upon request

Frequently Asked Questions
What capacity does the V1E handle and with what power supply?

The V1E handles internal sliding doors up to 70 kg with a 230V~ 50Hz power supply; a 24V d.c. version is also available on request.

Can I install it on an existing sliding door?

Yes: the V1E can be installed on all types of internal sliding doors, even after the door has been fitted, with minimal footprint and simple assembly.

Are additional photocells or safety sensors required?

It complies with EN16005 "Low Energy Movement": electronic speed control allows avoiding sensors or photocells. It is equipped with an integrated infrared activation sensor.
