V1


Automation for interior sliding doors. Capacity max. 70Kg

Download
Accessories

TOPP door operators, model V1, for interior sliding doors, max. load 70kg. Power supply 230V~ 50 Hz.

V1E allows:
• Easy installation;
• Simple adaptability to existing sliding doors;
• Minimal dimensions and appealing design.

V1E and V1 can be easily installed on existing interior sliding doors and complies with the EN16005 standard, “Low Energy Movement” section, that manages the door speed by a sophisticated electronic control with no need of sensors or safety photocells.V1E and V1 are equipped with an on-board infrared motion sensor.

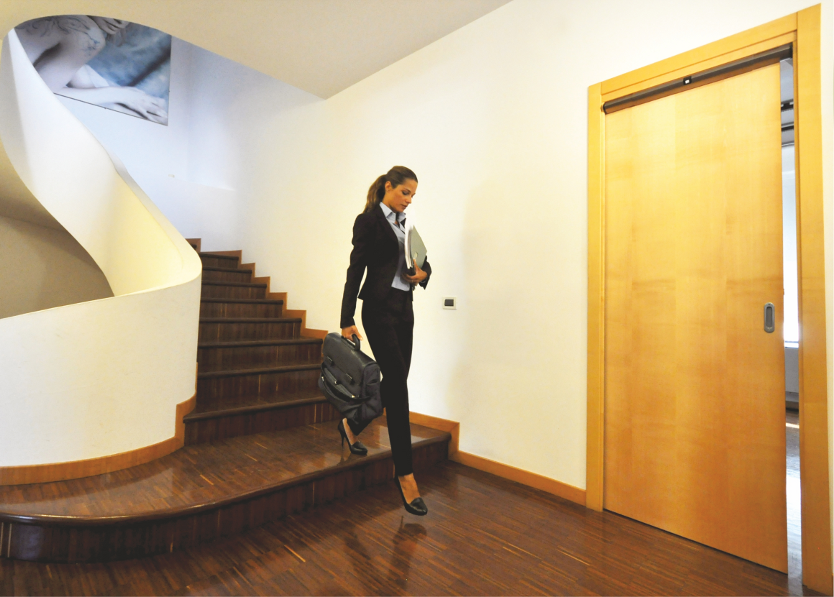

By automating internal sliding doors (pocket or surface-mounted), V1 proves extremely useful for people with disabilities, wheelchair users or those with reduced mobility, who may find traditional doors hard to handle and open, easing access to the rooms of the home and improving their mobility within the house.

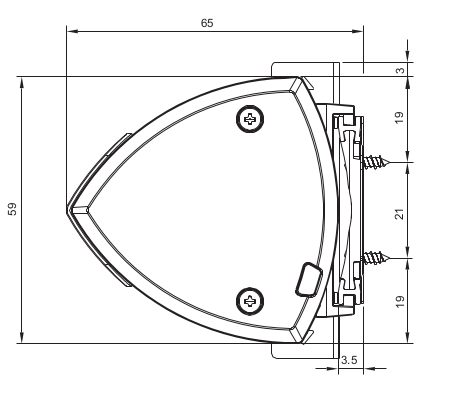

Dimensional Characteristics
automation interior doors V1 automation interior doors V1
Technical Characteristics
Power supply*230V ~ 50/60Hz
Peripheral power output5 V 80mA / 24 V 110mA
Absorption100mA a 230 V
Power absorbed15W
Durability200.000 cycles
Opening/closing speedIn accordance with the EN16005 about -Low Energy Movement- in reference to panel weight
Control of panel weightFrom 150 N to 700 N with 35 N pitches which can be set by the installer
Maximum thrust force67N
Door open waiting timeAdjustable from 2 ÷ 60 s
Protection against electric shocksClass II
Working temperature- 5°C + 50°C
Number of door panels1 PANEL
Maximum capacity700N
Size of opening700 ÷ 1200 mm
Overall dimensions59x65 mm x Variable length 700 ÷ 1200 mm

*24V d.c. operator available upon request

Frequently Asked Questions
Can the V1 be installed on existing sliding doors?

Yes, the V1 is designed for simple, fast installation even on existing doors, without replacing the door.

What clear-opening widths does the V1 fit?

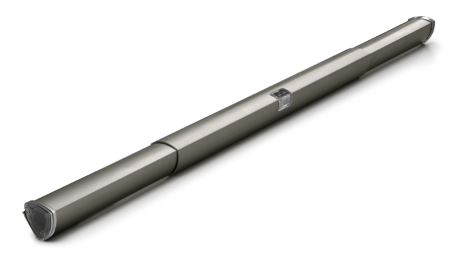

The V1 has telescopic adjustment that lets it fit clear openings from 700 to 1200 mm.

Are photocells or safety sensors needed with the V1?

No: the V1 complies with EN16005 "Low Energy Movement", which through electronic speed control allows avoiding the installation of safety sensors or photocells.
