S200

Electromechanical Swing Door Operator. Max. capacity 250 Kg.

Download
Zubehör

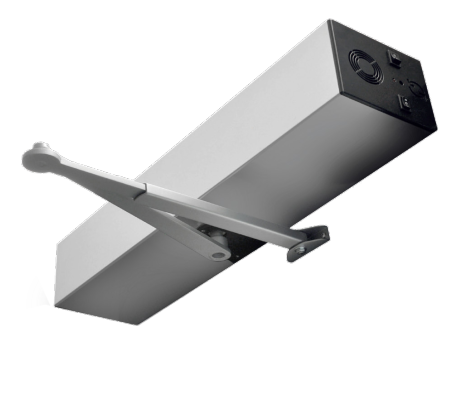

Electromechanical Swing Door Operator TOPP, model S200, for pedestrian swing doors. It may be used for door widths up to 700mm and 1200 and a maximum weight of 250kg and 130kg respectively. Power supply 230V~ 50 Hz. With a minimalist and sober design, covered by an elegant steel-painted cover, the S200 is the ideal solution for prestigious environments, both residential and commercial: shops, offices, hotels and other contests that require an automatic swing door to successfully creating spaces.

Simple and easy to install due to the fitting plate, the reduced weight, the adju stable settings on the electronic board and the side switches for both the power supply and the function and reset selection.

In compliance with the EN16005 Standard, the S200 functions in either Full Power and Low Energy modes, where the latter does not require safety sensors due to the electronic control of force and weight. Due to the combination of 3 different types of arm - slide track arm, push arm and elbow slide track arm - with extension systems, this mechanism is very easy to configure and adapt to any wall and door type. In case of a power failure, a long-life battery pack will assure the operator’s functioning.
Tur Automatisierung S200
Technische Merkmale

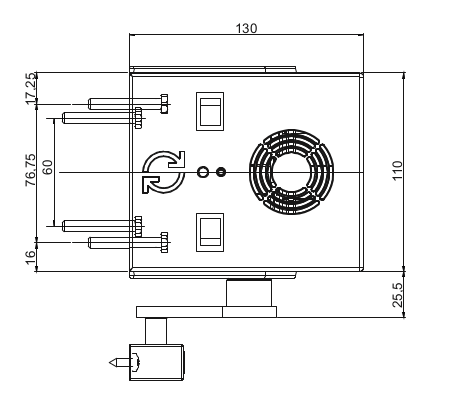

Abmessungen
Tur Automatisierung S200 Tur Automatisierung S200
Tur Automatisierung S200
